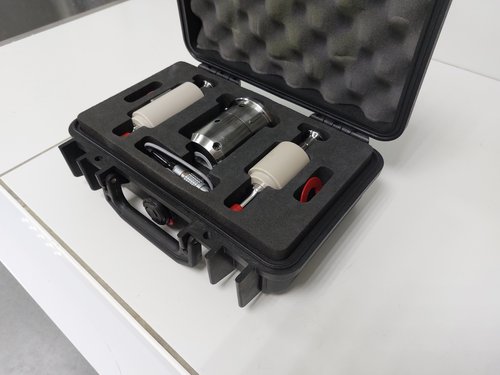

Radial Pressure Instrumented Die - STYL'One Evo
Remove from favorites
Add to favorites
The axial stress impulsed by punches during powder compression induces a horizontal response called die wall pressure, which varies depending on the material. The residual die wall pressure, measured when the axial pressure is released, must be controlled to prevent tablet defects such as capping, lamination or chipping. New or existing STYL'One Evo Compaction Simulators can be featured with an instrumented die to measure die wall pressure and prevent excessive stress against the die during ejection.
Available on models(s)
STYL'One Evo ;
STYL'One Classic ;
DEMO STYL'One Evo S/N 500 ;
STYL'One Evo DryCon® ;
STYL'One Evo WipCon® ;
Key technical features
- Strain gages
- Dedicated 11.28-mm round flat tooling
- Up to 300 MPa
Key user benefits
- Understand the deformation behavior of your APIs and Excipients
- Improve tablet integrity by minimizing elastic recovery and die friction at ejection to prevent tablet defects like capping or lamination
- Secure efficient manufacturing of tablets right at the development stage
- Extend tool life and reduce wear and tear on punches & die by lowering die friction
Compatible with model(s)
STYL'One Evo
STYL'One Classic
DEMO STYL'One Evo S/N 500
STYL'One Evo DryCon®
STYL'One Evo WipCon®
STYL'One Evo
STYL'One Classic
DEMO STYL'One Evo S/N 500
STYL'One Evo DryCon®
STYL'One Evo WipCon®
