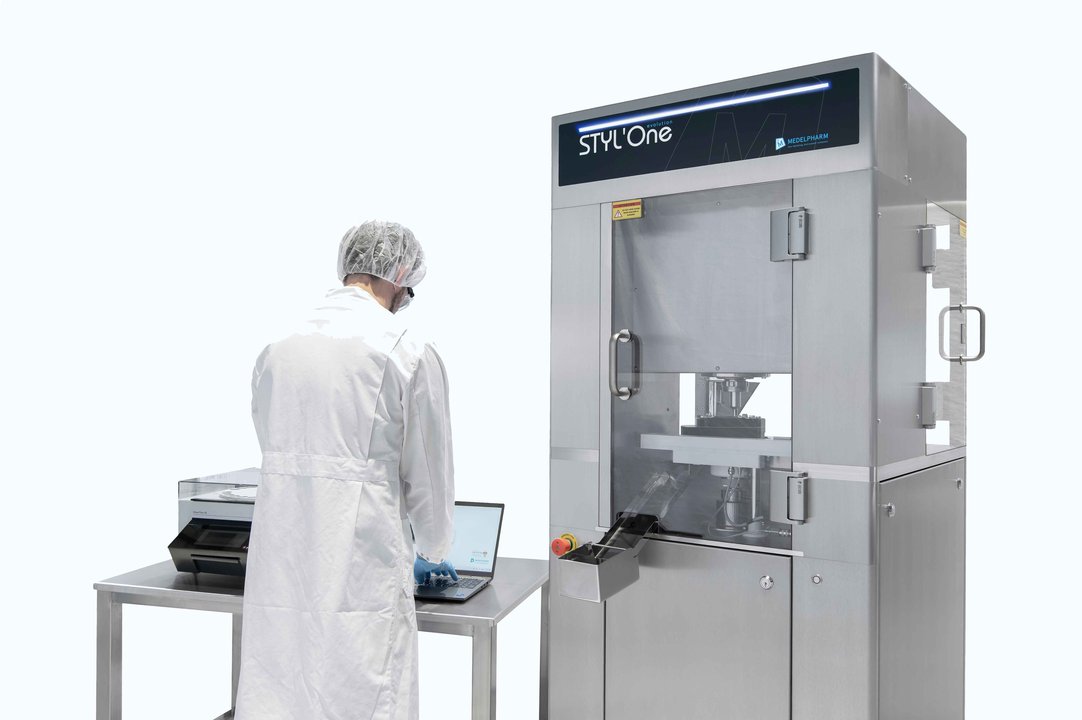

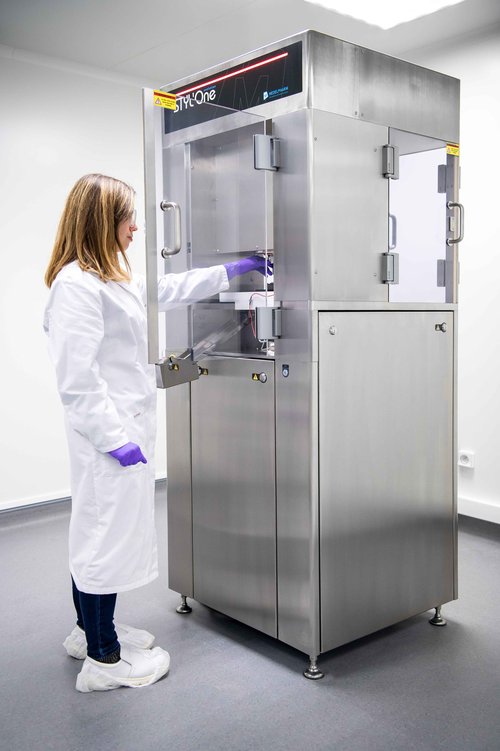

STYL'One Evo

The STYL’One Evo is a highly versatile compaction simulator designed to support pharmaceutical and nutraceutical tablet development from early formulation to production scale-up. It integrates a wide range of capabilities in a single, compact machine – supporting mono – and multilayer tablets, tab-in-tab/press coating designs, dry granulation simulation and more.
Thanks to its advanced drive technology and compression control, it can accurately replicate the compression profiles, forces, and dwell times of industrial rotary tablet presses. This makes it a valuable tool for process development, assessing a formulation for scale-up, troubleshooting tablet defects like capping and lamination and ensuring smooth technology transfer to production.
KEY TECHNICAL FEATURES
- Standard, multi-tips, mini-tips and oversized toolings
- Multiple feeding systems available: manual, gravity, paddle
- Single layer, upgradable to multilayer and tab-in-tab
- Production rotary press simulation for scale-up and troubleshooting
- Research compression profiles for early API characterization
- Fully instrumented: pre- and main compression forces, ejection force, displacement, radial die wall pressure, take-off force, heated die
- GMP-compliant production module for small batch production
- Up to 120 kN pre- and main compression
- Powerful data analysis software
- Available in DryCon® and WipCon® executions for highly potent APIs
KEY USER BENEFITS
- Understand material attributes with a minimal amount of powder
- Define optimal formulation recipe and manufacturing processes
- Evaluate the impact of process parameters on tablet quality attributes
- De-risk scale-up to production equipment
- Solve tablet defects and optimize manufacturing processes
